Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

Product Categories

Dongying Gardener Oilfield Equipment Co.,ltd.

Contact Now

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

Name: Downhole Tubing Encapsulated Conductor cable for monitor provide power and transmit signals in a downhole application
Brand: GARDENER
Price: 2 USD

Wholesale Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application. from china suppliers

Brand Name : GARDENER

Model Number : 16AWG/18AWG

Certification : ISO9001

Place of Origin : CHINA

MOQ : according to material and requirements

Price : $2~10/meter

Payment Terms : T/T

Supply Ability : 500,000m each month

Delivery Time : 15-30days

Packaging Details : reel

Material : 316/316L/alloy 825 or according to client's requirements

Conductor : Tinned copper stranded or one copper wire ,or according to client's requirement

Wall thickness of steel tube : 0.028" and 0.035"

Tube diameter : 6.35mm/4.0mm/3.5mm/3.2mm etc.according to clients' requirements

Working temperature : - 40°C to 150°C

Cable O.D. : 11X11mm or No encapsulation

Purpose : detective cable

Color of cable : Yellow

Contact Now

Downhole Tubing Encapsulated Conductor cable/downhole TEC cable

can be used in harsh downhole environment

DGOE is a professional supplier of downhole TEC (Tubing Encapsulated Conductor) cables that are used in the oil & gas industry. DGOE downhole TEC cable are used to monitor, provide power and transmit signals in a downhole application. Cables used in the oil & gas industry must be able to withstand extreme environments, extreme temperatures and extreme pressure.

Standard encapsulation sizes(11mmx11mm square and flatpack and multiple tube construction)are available to meet almost any downhole requirements.Composite cables utilizing various combinations of electrical and optical components are available to match specific downhole needs.

Please contact cathyshenpeng@gmail.com for more informations.

We also can provide this cable without encapsulation.

See below pictures, at present we have these sizes that other clients asked.

Please tell us details,we can make it according to your requirements soon.

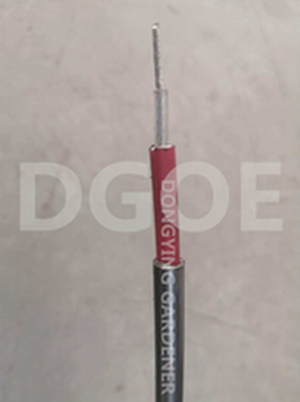

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

**18 AWG 7X0.39mm

FEP insulation

Polypropylene filler

316L/Alloy 825tube wallthickness 0.71mm

Yellow square profile 11mmx11mm

**16AWG 7X0.49mm

FEP insulation

Polypropylene filler

316L/Alloy 825tube wallthickness 0.89mm

Yellow square profile 11mmx11mm

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application. Images
