Working Temperature :205°C(401°F) Electric Submersible Pump Cable

Product Categories

Dongying Gardener Oilfield Equipment Co.,ltd.

Contact Now

Working Temperature :205°C(401°F) Electric Submersible Pump Cable

Name: Working Temperature 205C401F Electric Submersible Pump Cable
Brand: Gardener
Price: 1 USD

Brand Name : Gardener

Certification : API ISO,API TS,API Q1,CCC

Place of Origin : China

MOQ : 400m

Supply Ability : 1000m+10days

Packaging Details : All steel corrugated reels with fixed base,outside wrapped by fuming wood or wood box for small quanyities

Voltage : 3kv,4kv,5kv,6kv

Temperature : 205°C（401°F）

Armour : Monel or other

Contact Now

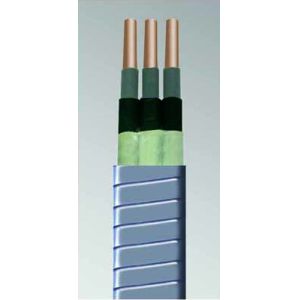

Electric Submersible Pump Cable

PI& EPDM/Alloy Lead/205℃(401°F)/Flat

Products Description

Oxygen-free solid (Stranded)bare copper conductor,combined insulation with polyimide-F46 composite film and fluoroplastics,Nitrile rubber jacket,polytef and fiber tape covered completely over the jacket,full galvanized steel(or stainless steel or Monel)tape interlocking armour,flat type.

Production Range

Voltage:3kv,4kv,5kv,6kv.

Temperature:The permissible and long-term working temperature is 205°C(401°F)

Performing Criterion

API RP 11S5-2008,11S6-2008;IEEE 1017,1018,1019;GB/T 16750-2008

Working Temperature :205°C(401°F) Electric Submersible Pump Cable

Application Range

The cable is applicable for using in Electric submersible pump units with rated voltage less than 3kv or 6kv.It has the excellent function of oil-resistance,heat-resistance and corrosion-resistance.

Specification & Parameters

Working Temperature :205°C(401°F) Electric Submersible Pump Cable

We can also production customer's required cable according to the concrete specification.

Delivery &Packing

All steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.

Manufacturing Equipment

Working Temperature :205°C(401°F) Electric Submersible Pump Cable

Testing Equipment

Working Temperature :205°C(401°F) Electric Submersible Pump Cable

Product Qualification

API ISO,API Q1,API TS,CCC.
